(550-905T) Holley EFI Terminator X Gen IV 4.8/5.3/6.0 GM Truck Engines & LS2/LS3
(550-905T) Holley EFI Terminator X Gen IV 4.8/5.3/6.0 GM Truck Engines & LS2/LS3
58x Crank - 4x Cam - EV6 Injectors - USB/CAN Tuning Cable
-

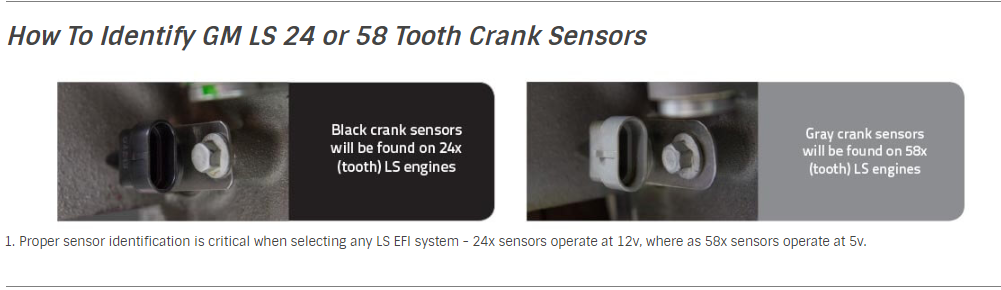

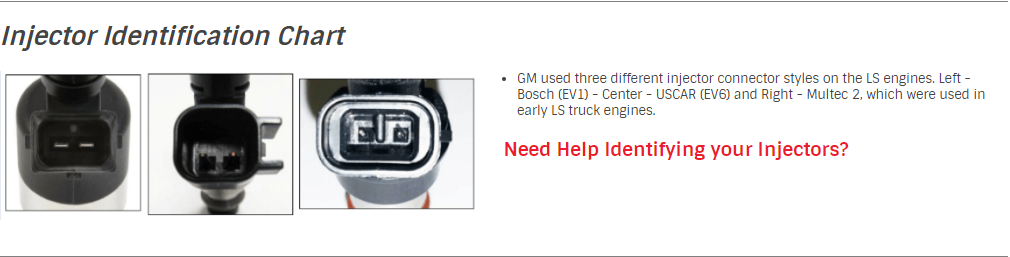

Designed for GM LS Engines with 58x Crank, 4x Cam - and EV6 Injectors.
-
Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
-
High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
-

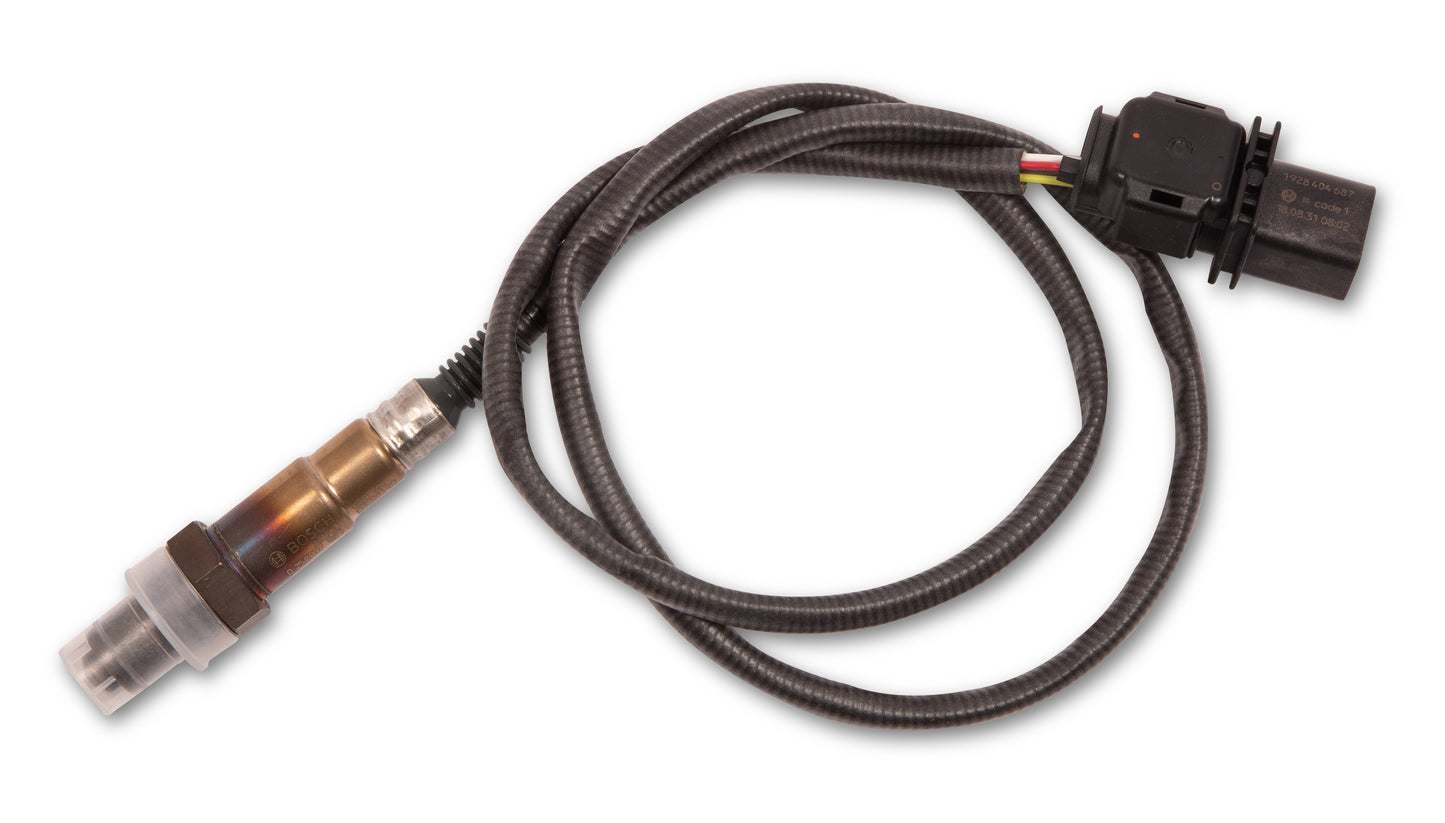

All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
-

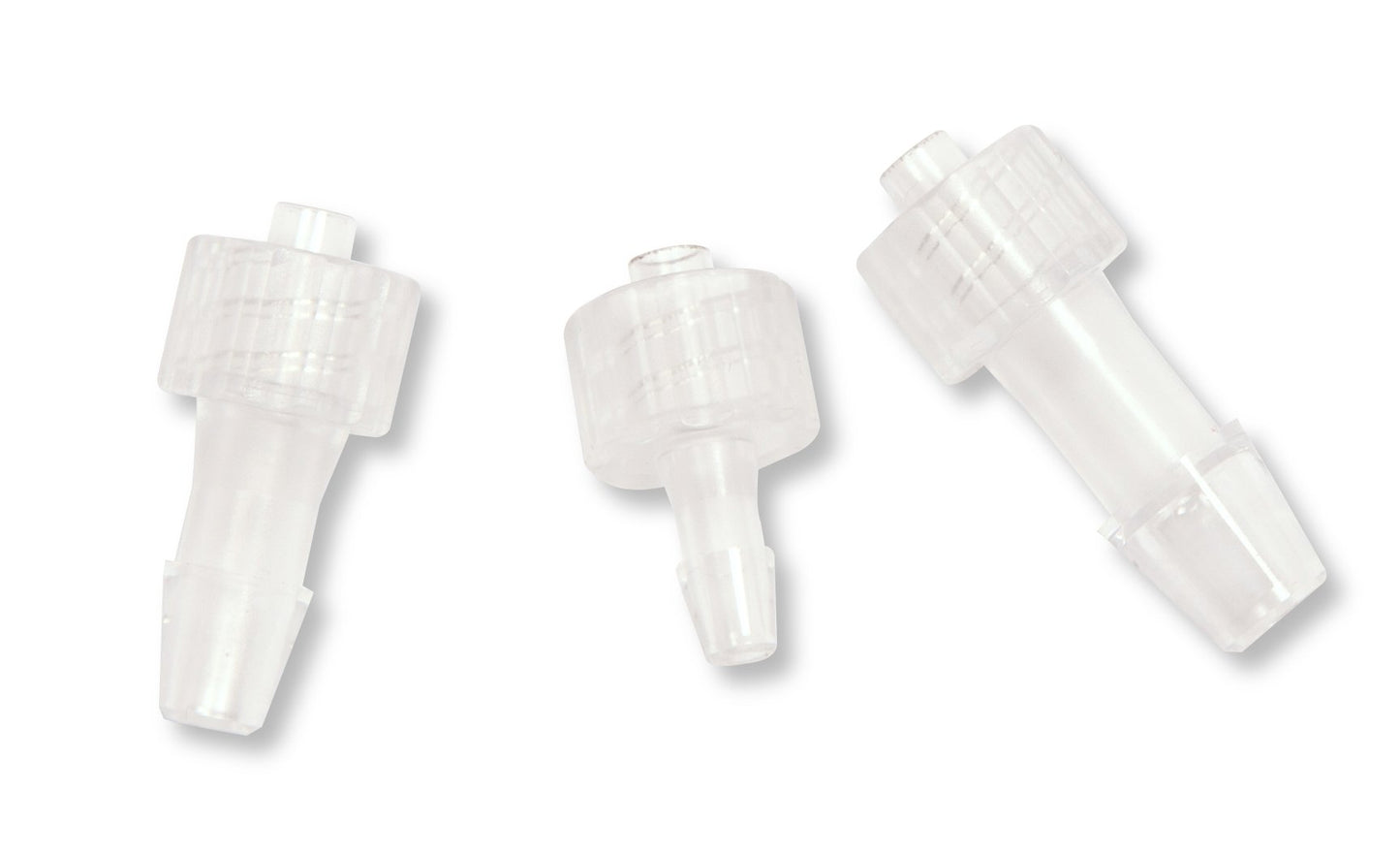

MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
-
4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
-
4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
-
Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
-
Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
-
On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
-
Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
-

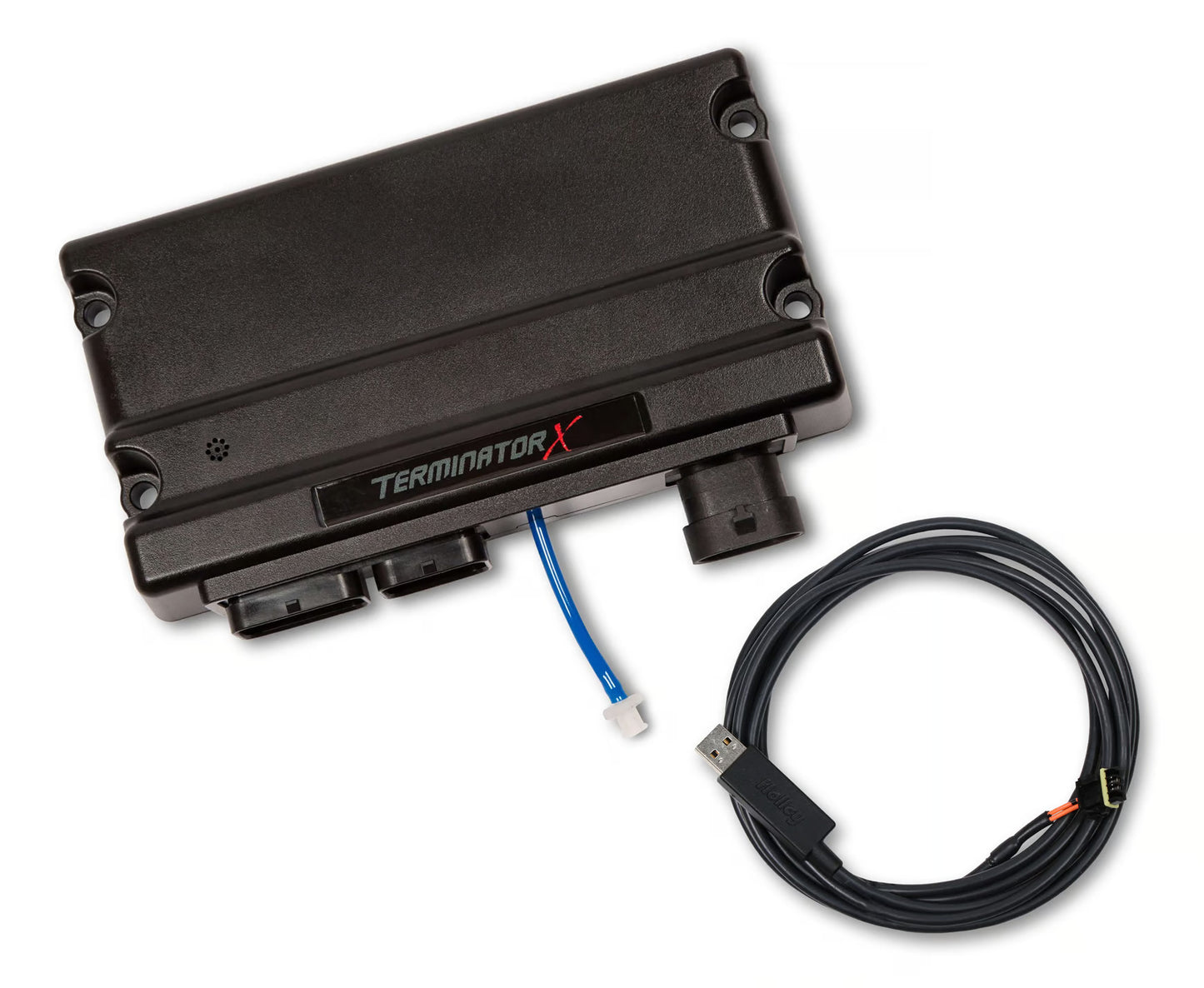

Includes CAN/USB tuning cable allowing you to configure your ECU and Tuning the engine in real time.
-

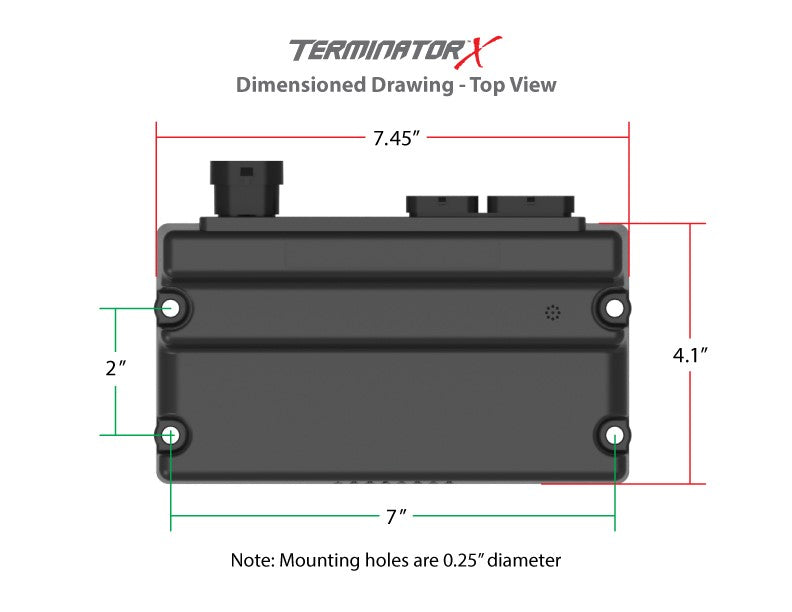

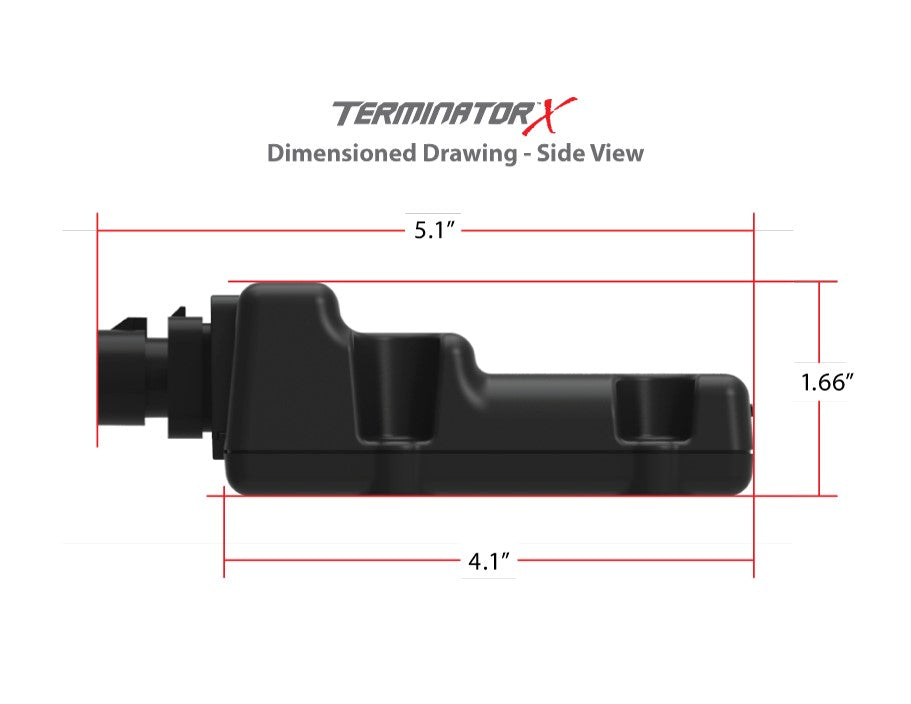

The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
-
Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
-
Free EFI Tuning Software for complete control of your Terminator X power plant
-

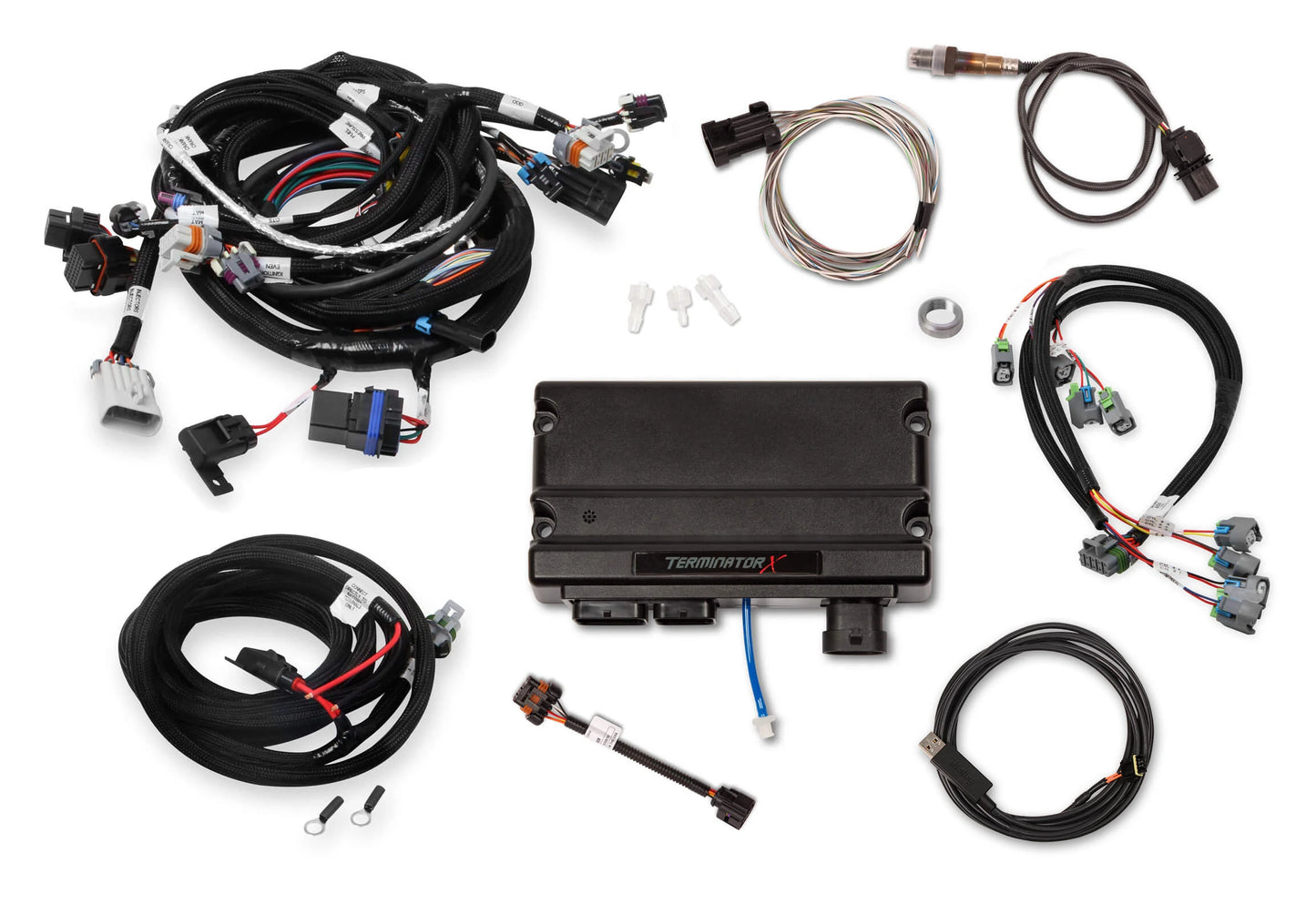

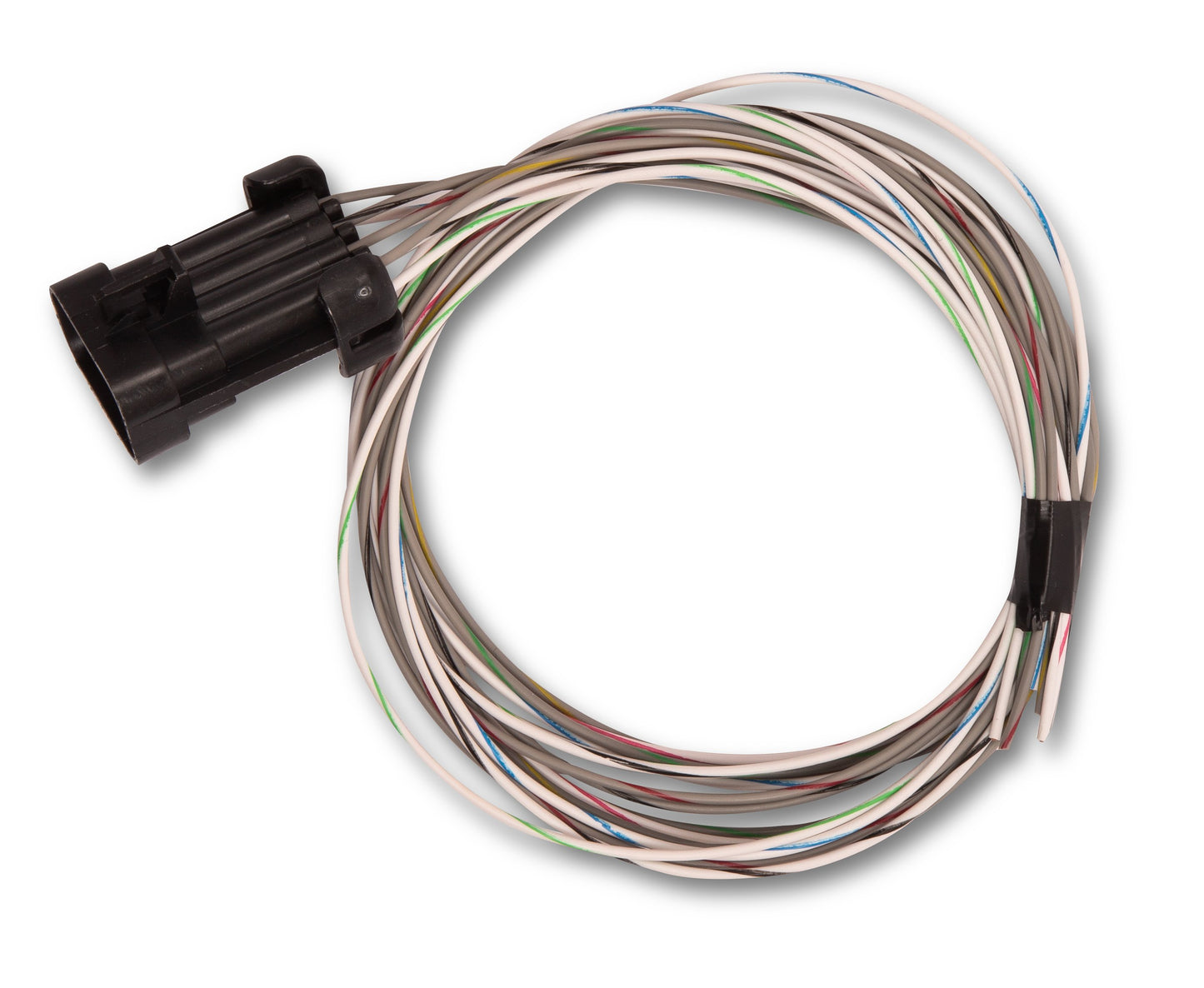

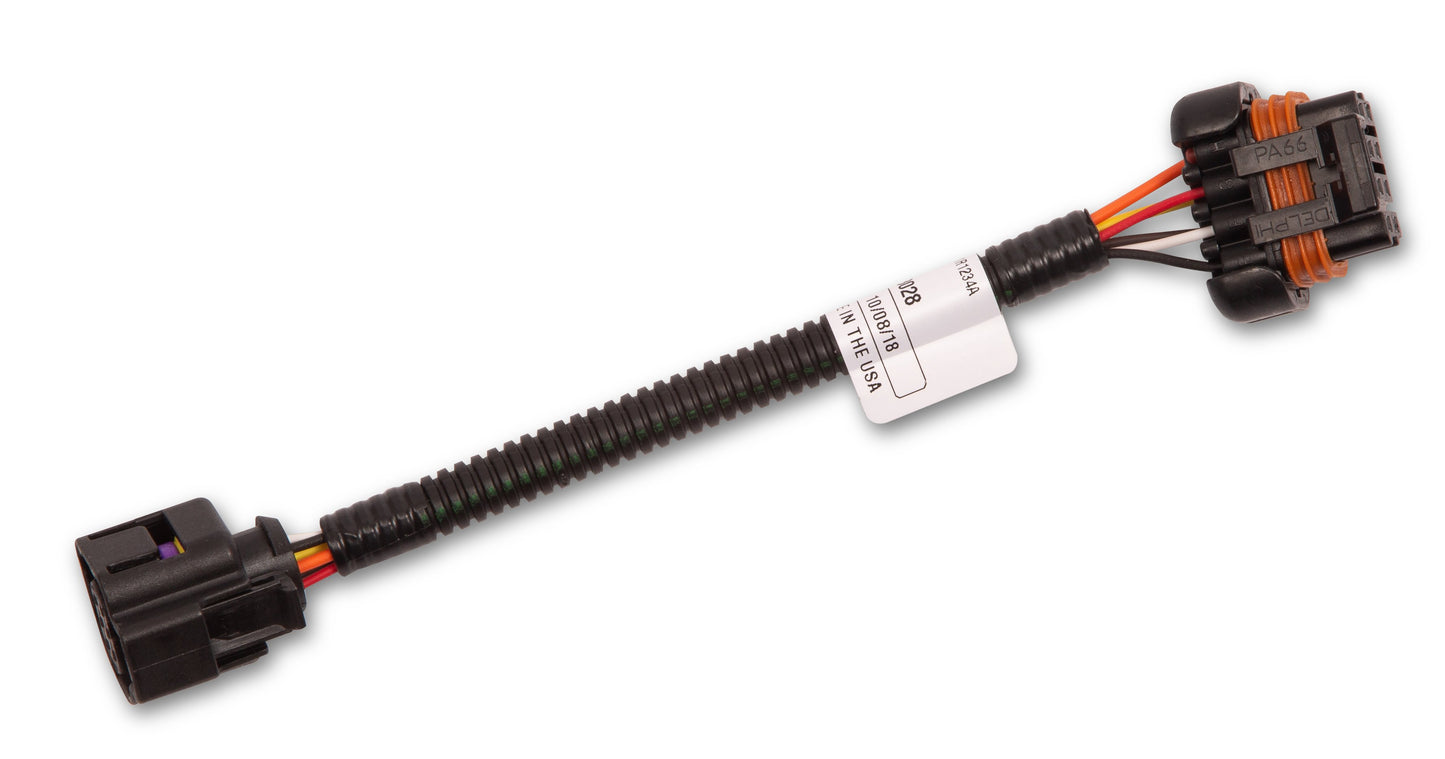

Includes: 58x/4x LS Engine Main Harness - EV6 Injector Harness - Terminator X ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.
Couldn't load pickup availability
Emissions Regulations
Emissions Regulations
Some of the parts sold on our store are illegal to install on an emissions controlled vehicle. Please check with your local state / city emissions office to verify whether this item is legal for installation on your vehicle.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicles
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicles
