(553-106) Holley EFI 7" Digital Dash

(553-106) Holley EFI 7" Digital Dash

$912.95 USD
$0.00 USD $912.95 USD
Sale Sold out

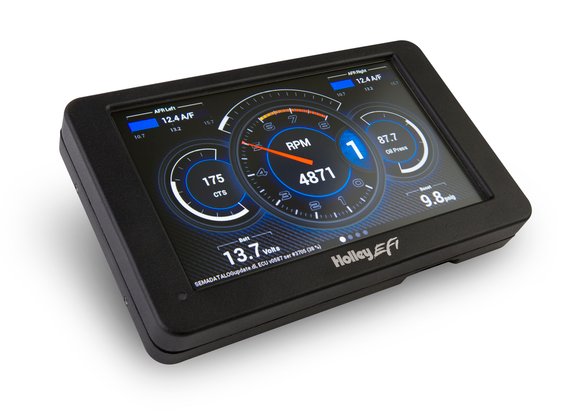

The Holley EFI Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5" wide, 4.625" tall, and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and plays connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!

Features:

  • Plug and play connection to all Holley EFI systems via CAN bus

  • Compact, customizable dash for use in a variety of motorsports applications

  • 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun

  • 800x480 resolution with auto brightness

  • Operating voltage min 8V - 20V

  • Weather proof aluminum housing featuring flexible mounting options

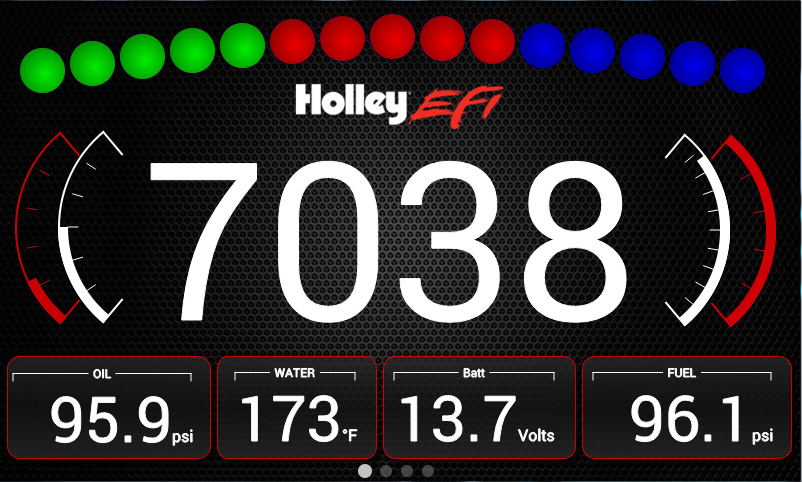

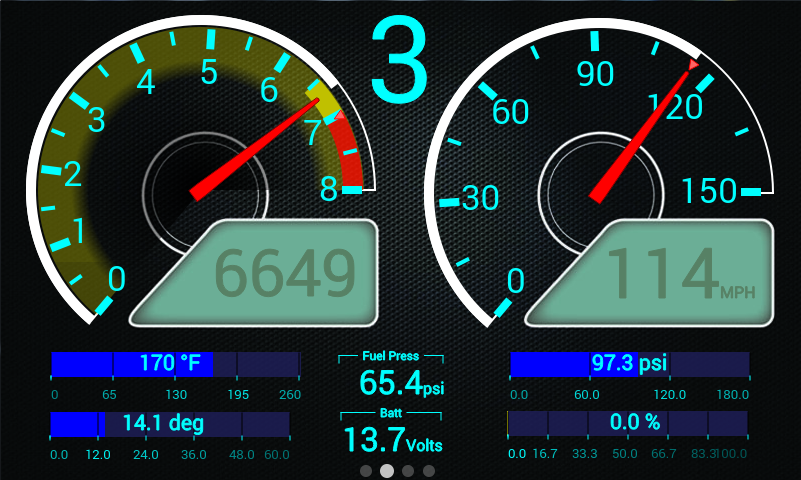

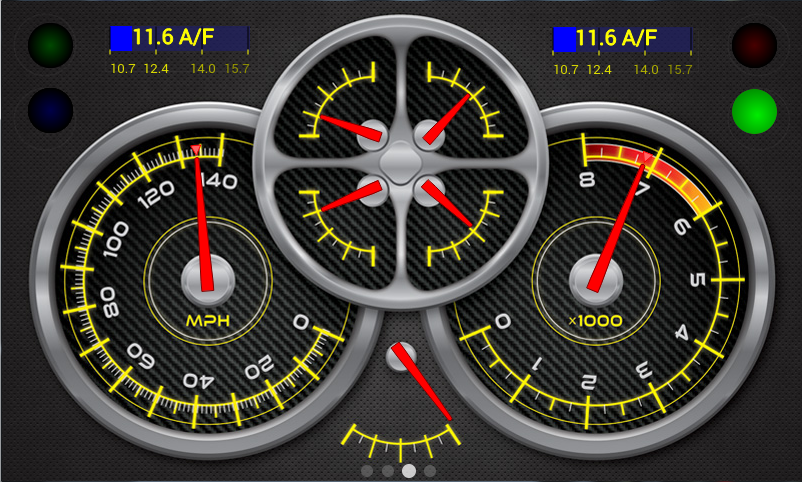

  • Completely customizable display of all EFI parameters including every user configurable input and output available

  • Multiple gauge and indicator types with limitless customization options

  • Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)

  • Virtual Switch Panel (replaces the need for physical switches)

  • User defined alarms for any input

  • Configurable progressive shift lights and light bar

  • Control and on screen playback of EFI data logs

  • Download and save Holley EFI data logs to external USB memory stick

  • Expandable internal storage on micro SD card

  • Support for future USB devices

  • Upgradable with future software enhancements

  • Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations

  • Integrated 3 Axis Accelerometer

Emissions Regulations

Some of the parts sold on our store are illegal to install on an emissions controlled vehicle. Please check with your local state / city emissions office to verify whether this item is legal for installation on your vehicle.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles

1967 and older U.S. manufactured Federally Certified vehicles

1967 and older Foreign manufactured vehicles

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles

1968 and newer U.S. manufactured Federally Certified vehicles

1968 and newer Foreign manufactured vehicles
