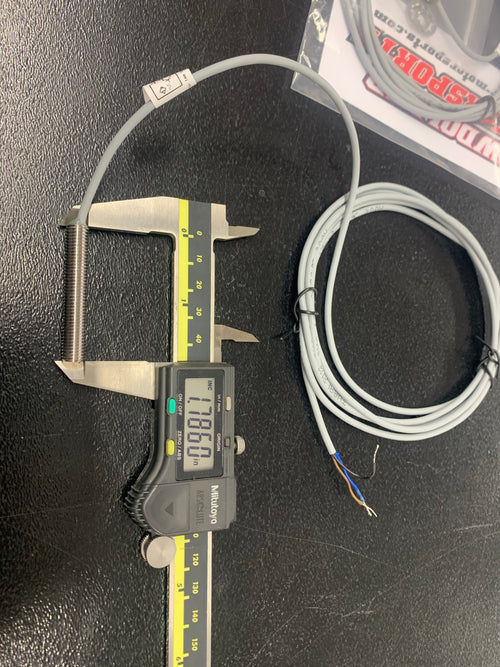

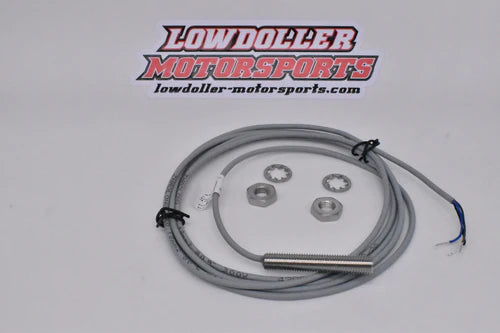

LDM 5/16"-24 Hall Effect Speed Sensor
LDM 5/16"-24 Hall Effect Speed Sensor
LDM-HALL-5/16-NO-NP
-
Triggered by ferrous material (Not magnets)
-
5/16"x24 body
-
Built in LED light for easy setup
-
Stainless steel body
-
Detection range 0.1MM to 1MM (0.004" to 0.04")
-
Flush mount
-
Supply voltage 10V-30V
-
Short circuited/reverse protection built in
-
Working temperature -13F to 176F
-
IP67 rated (water proof)
-
Normally open signal
-
Max switching frequency 8,000HZ
Wiring:
Brown = power supply (10-30VDC)
Blue = Clean ground
Black = Signal wire (Outputs 0V) to data logger
